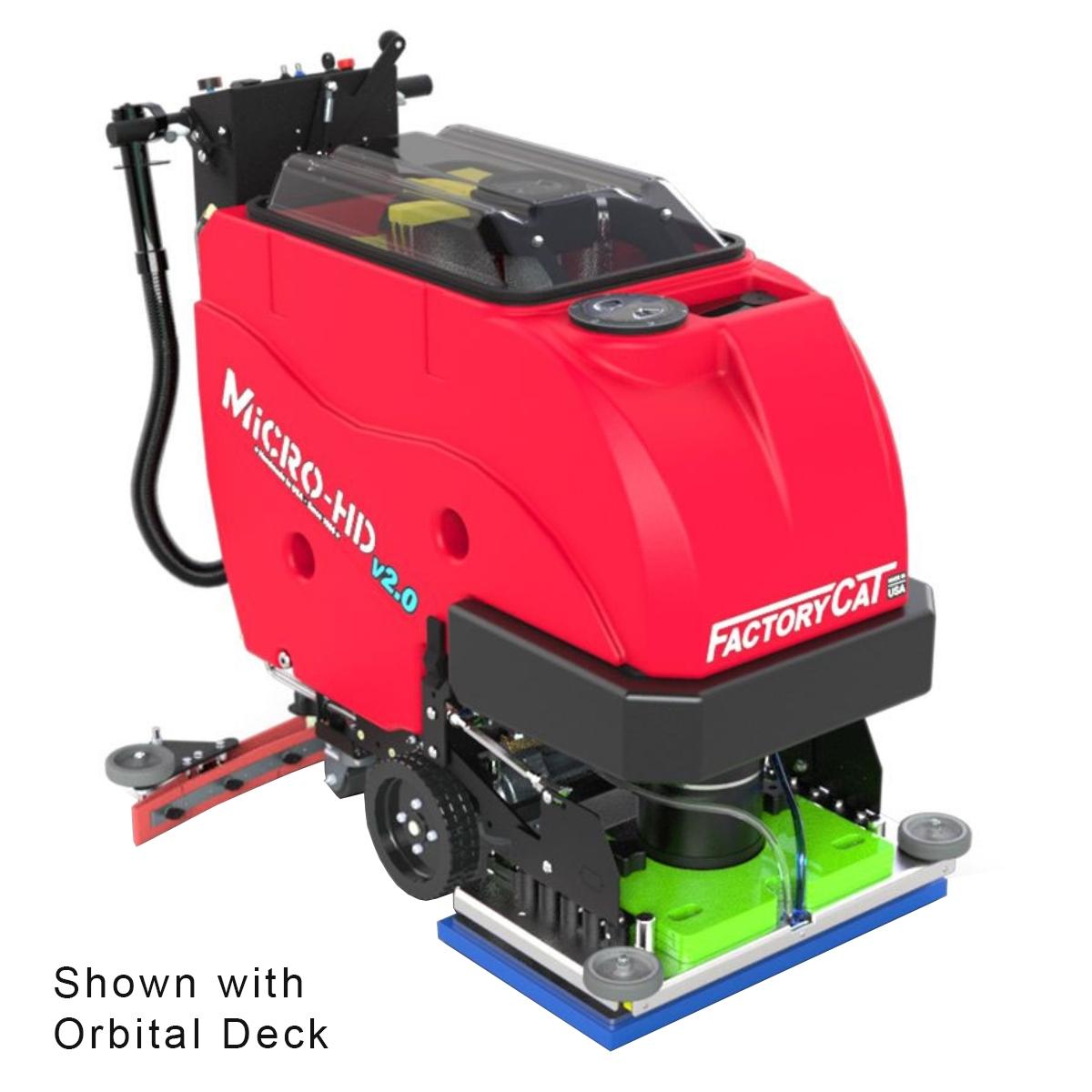

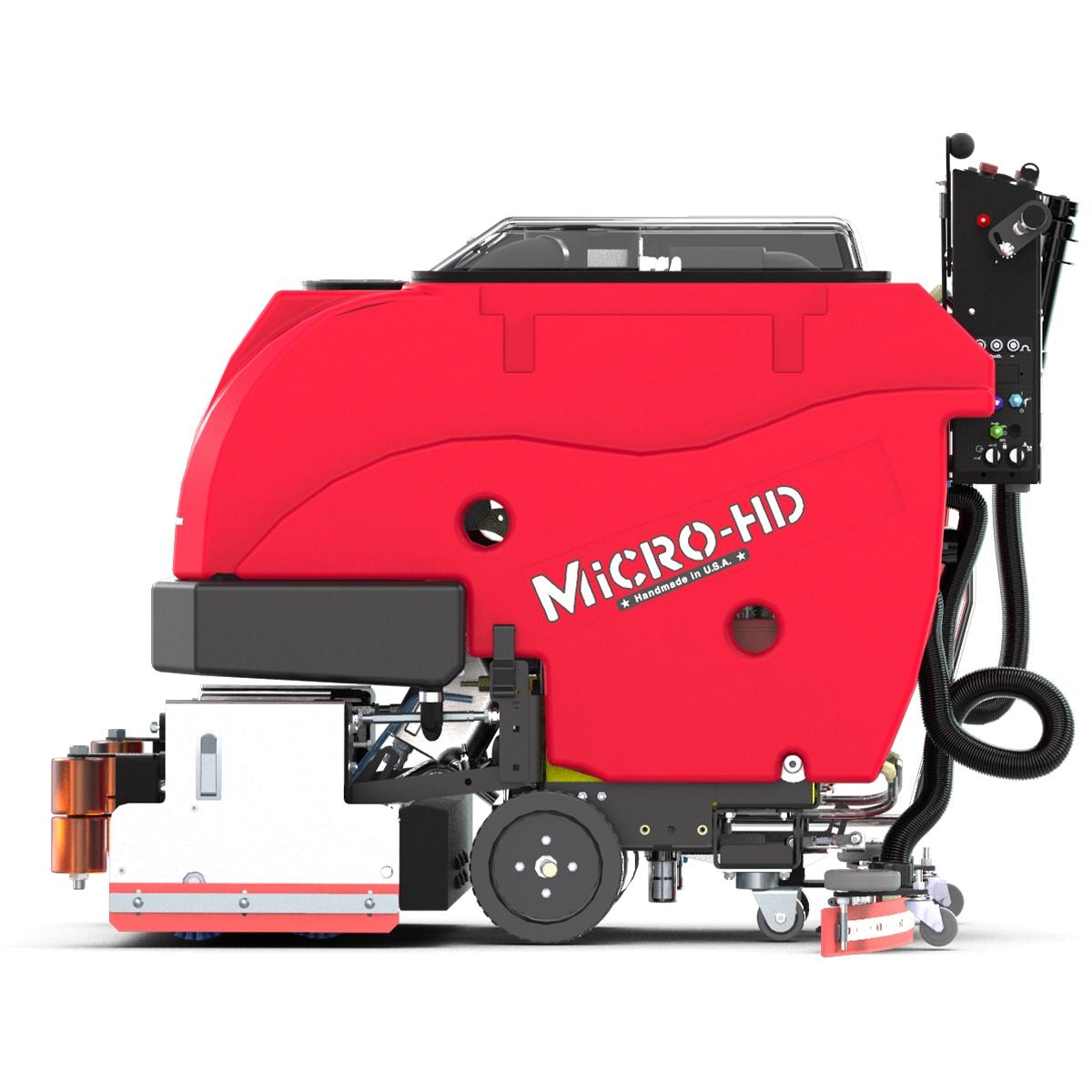

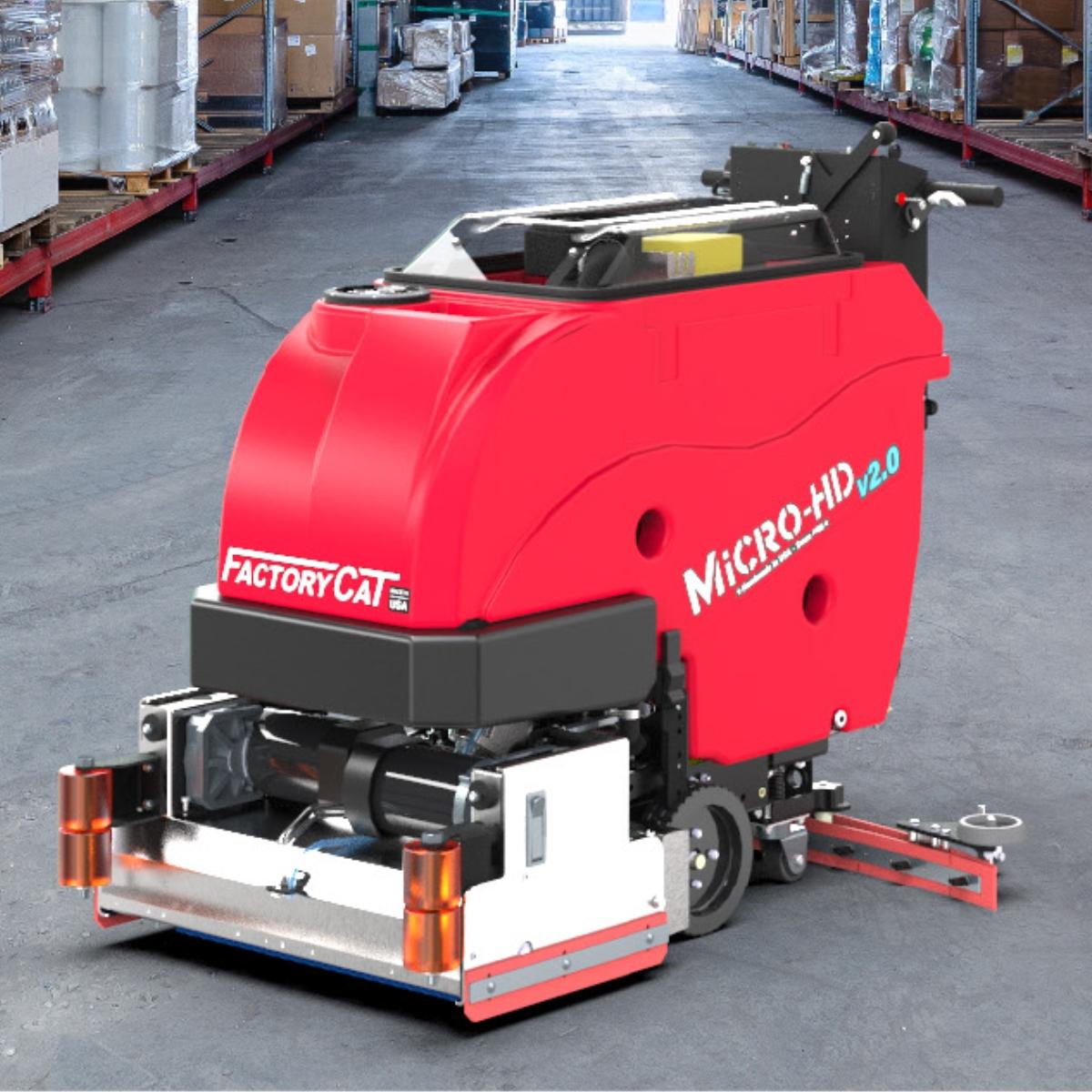

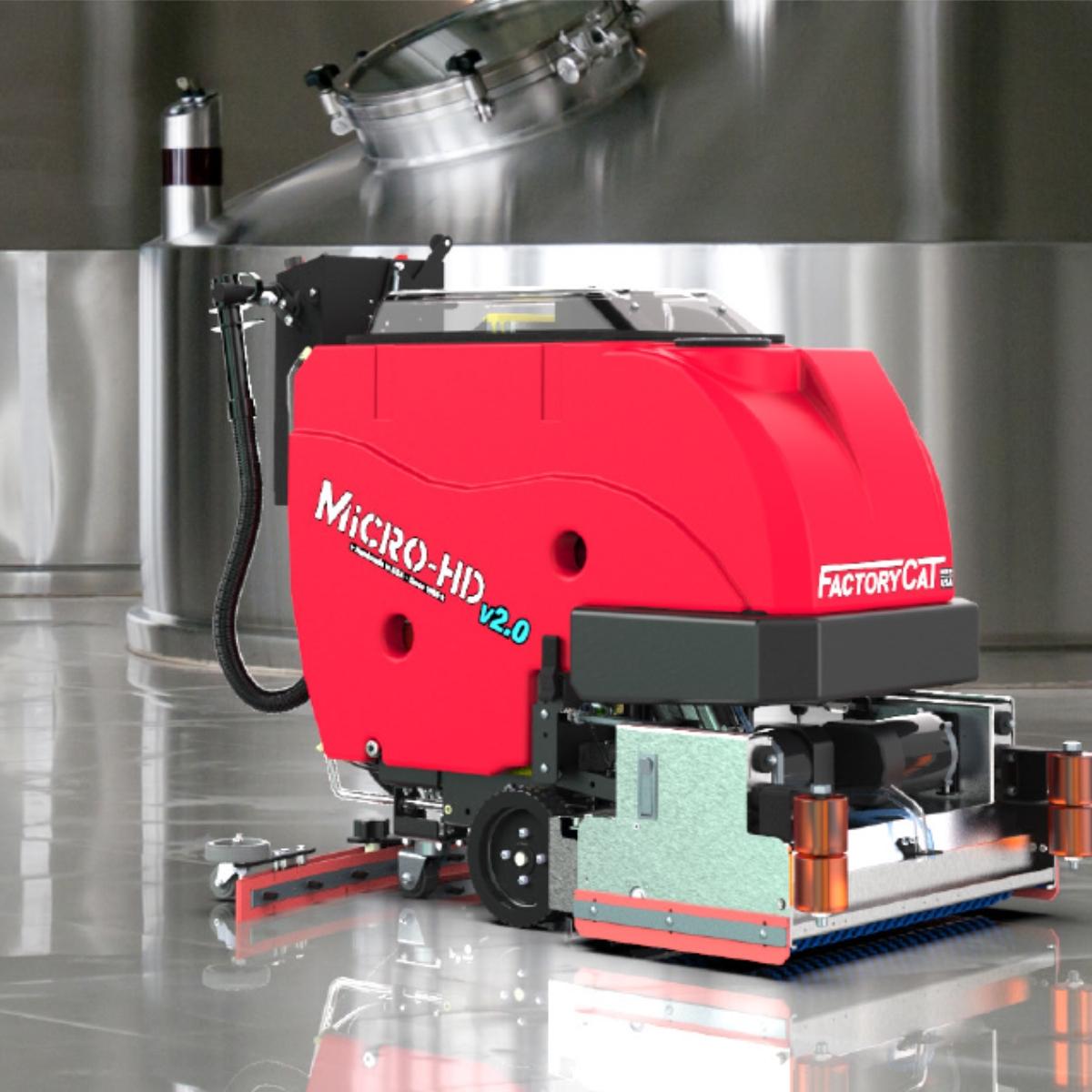

FactoryCat Micro-HD v2.1 Floor Scrubber
FactoryCat’s Micro-HD v2.1 Floor Scrubber is known for its simple design and durable construction.

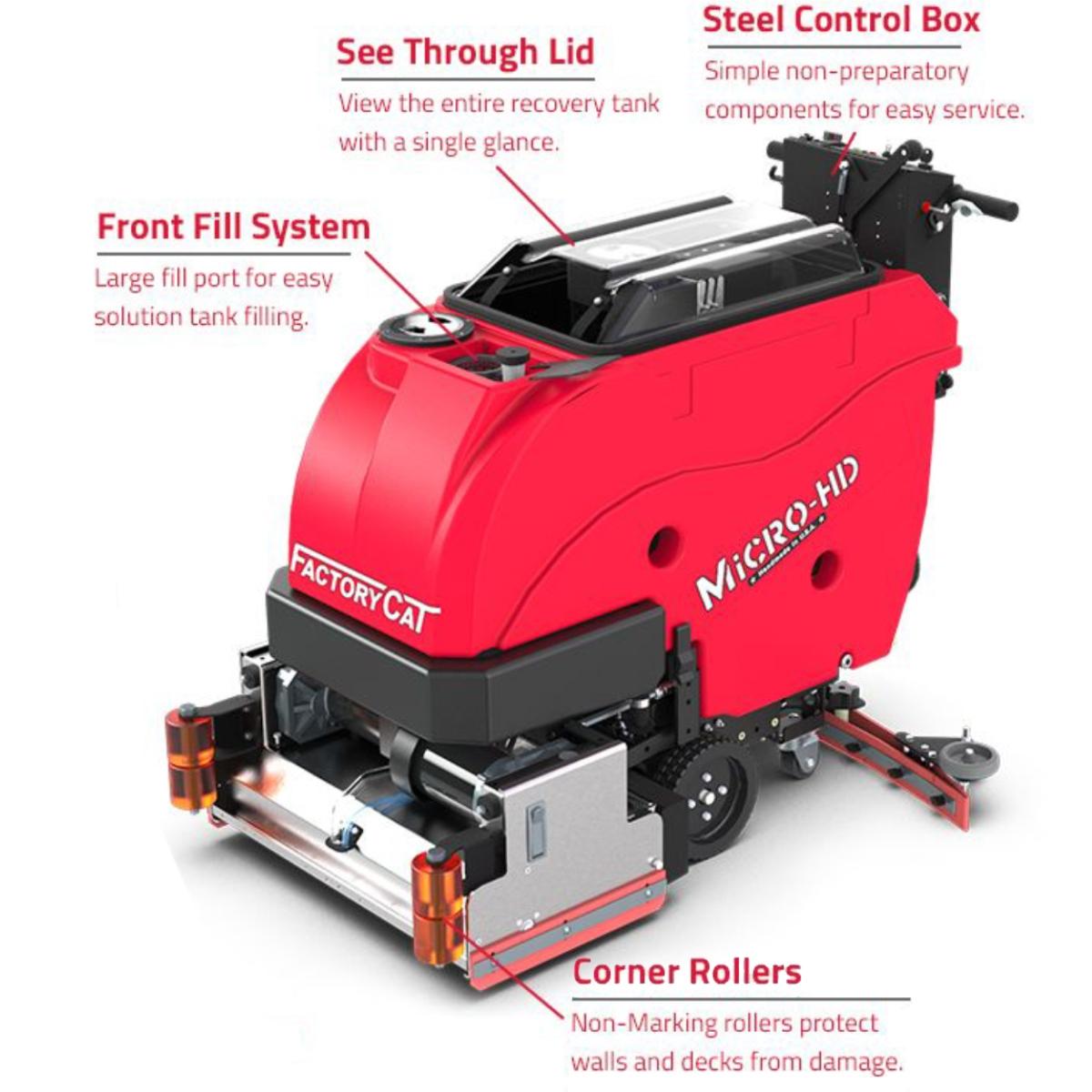

It offers unmatched value for the customer. The Micro-HD v2.1 Walk Behind Floor Scrubber comes equipped with a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease or a Pad Assist version. Your operators will find the MICRO-HD Floor Scrubber easy to maneuver into tight areas, and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.
Used equipment availability changes frequently. Contact us to confirm inventory.
| Specification | Micro-HD v2.1 |
|---|---|
| Machine Dimensions | |
| Length × Width × Height | 50″ × 23″ × 39″ |
| Weight Without Batteries | 278–328 lbs |
| Weight With Batteries | 410–460 lbs with 210 Ah batteries |
| Chassis Construction | 3/16″ steel, powder coated |
| Front Wheels (Diameter × Width) | (2) 8″ × 2″, solid black |
| Rear Casters (Diameter × Width) | (2) 2.5″ × 1.38″, non-marking gray |
| Brush / Pad System | |
| Disk Dimensions | 20″ – (1) 20″26″ – (2) 13″ |
| Disk Motor | 20″ – (1) 0.75 hp / 200 rpm26″ – (2) 0.75 hp / 270 rpm |
| Optional Motor Upgrade | (2) 1.0 hp / 350 rpm |
| Cylindrical Dimensions | 25″ – (2) 6″ diameter × 23″ |
| Cylindrical Motor | (2) 0.75 hp / 270 rpm |
| Cylindrical Brush Speed | 750 rpm |
| Orbital Dimensions | 20″ × 14″24″ × 14″ |
| Orbital Motor | 1.0 hp / 2,500 rpm |
| Brush Down Pressure | Up to 175 lbs / 500 lbs actuator rating |
| Power System | |
| System Voltage/Amps | 24 VDC / 130 Ah wet |
| Optional Battery | 150 Ah wet / 115 Ah AGM / 140 Ah AGM |
| Battery Charger | Onboard charger included |
| Run Time | Up to 2.5 hours |
| Drive System | |
| Power | 0.75 hp, all gear/sealed |
| Forward Speed | 0–230 ft/min / 0–2.6 mph |
| Scrubbing Speed | 0–184 ft/min / 0–2.0 mph |
| Reverse Speed | 0–130 ft/min / 0–1.5 mph |
| Solution / Recovery System | |
| Solution Tank Capacity | 13 gallons, with graduated sight tube |
| Solution Flow / Filter | 0–0.5 GPM / stainless inline |
| Recovery Tank Capacity | 15 gallons, 1.5″ diameter drain hose |
| Small Tank Capacity | N/A |
| Demisting Chamber | 1.25 gallons |
| Drain Saver | 30 cubic inches |
| Vacuum Power | 0.8 hp / 3-stage / 5.7″ diameter |
| Water Lift / Airflow | 68″ / 72 cfm |
| General | |
| Productivity – Theoretical | Up to 26,000 sq. ft./hr. |
| Productivity – Practical | Up to 12,059 sq. ft./hr. |
