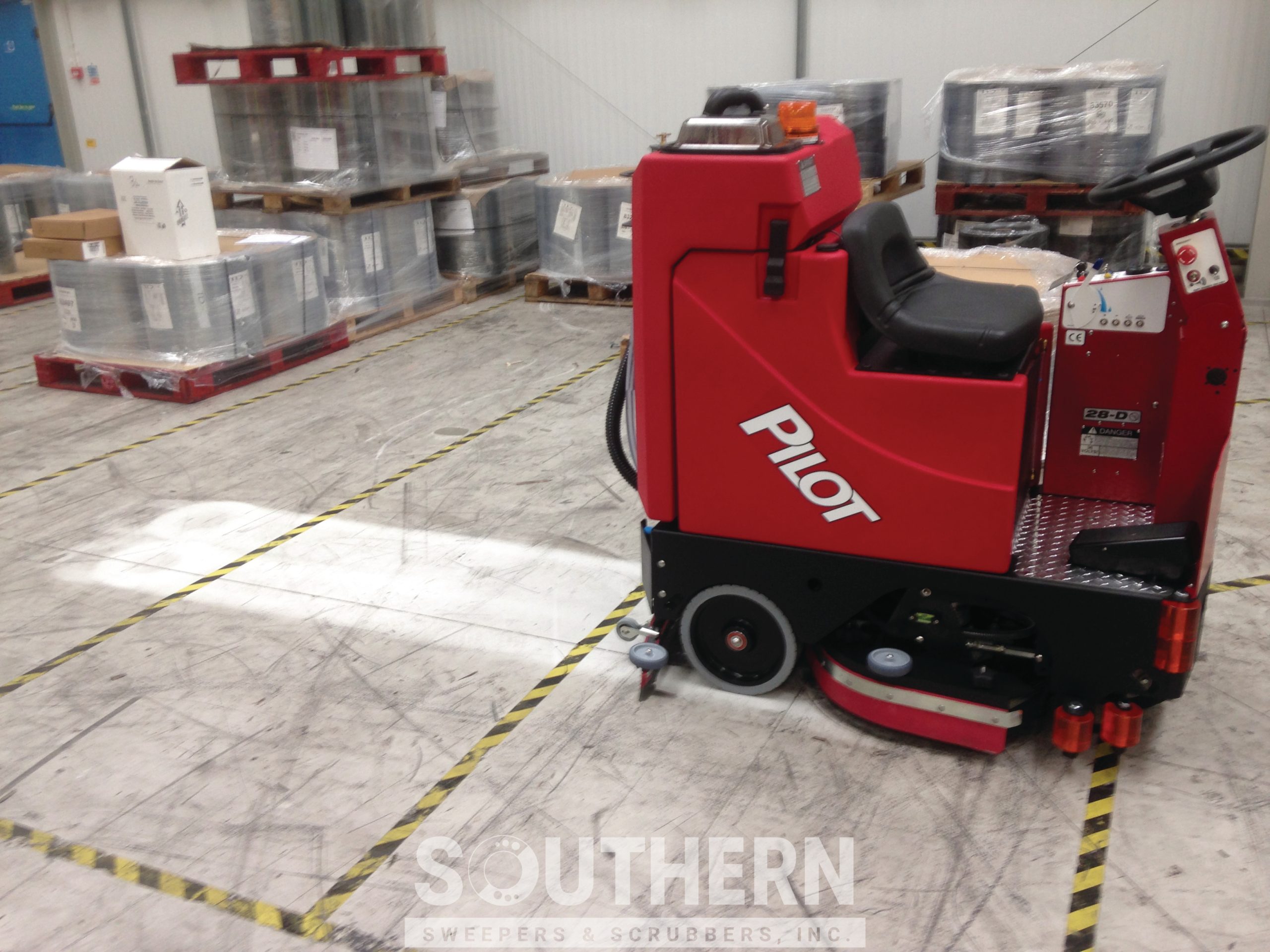

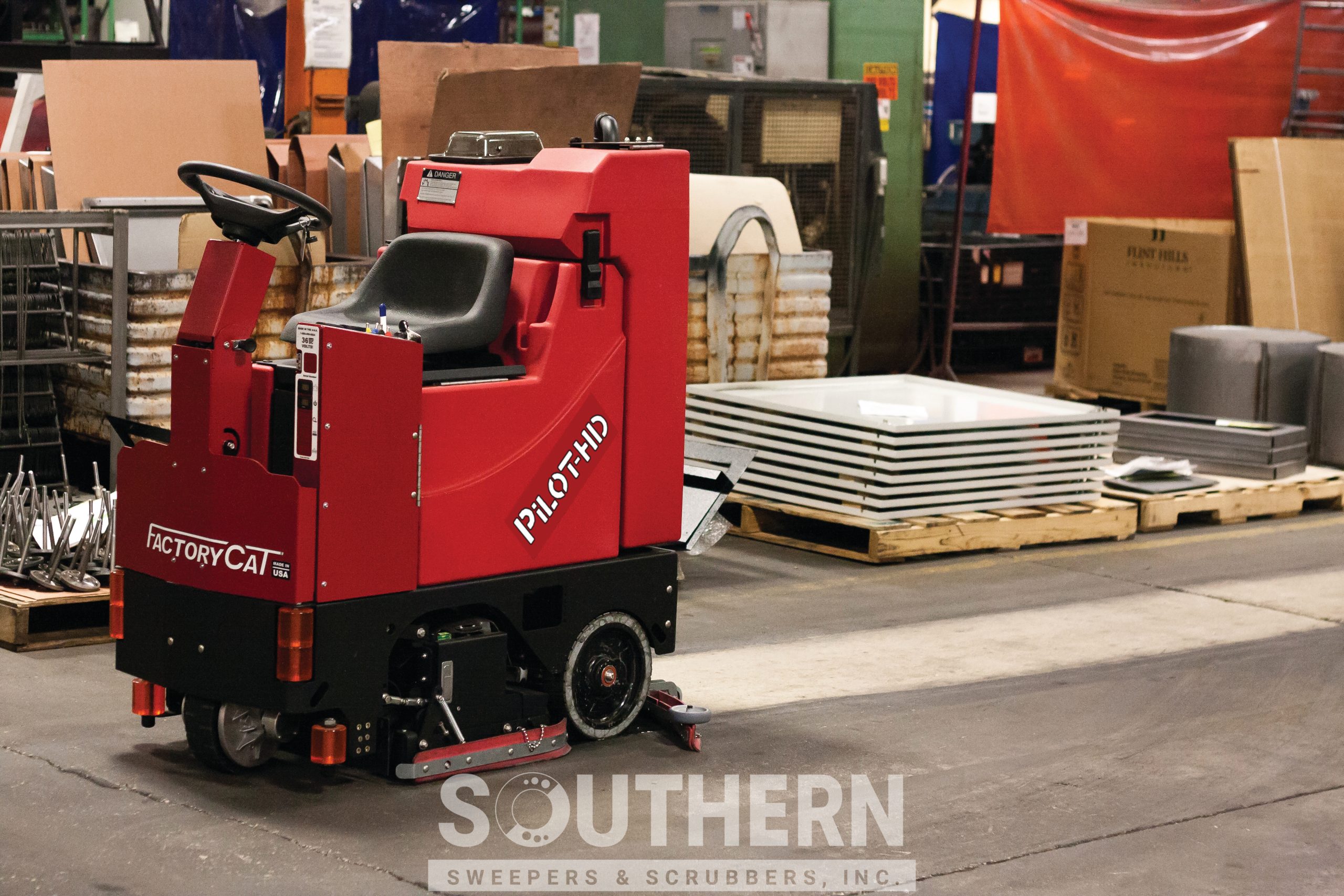

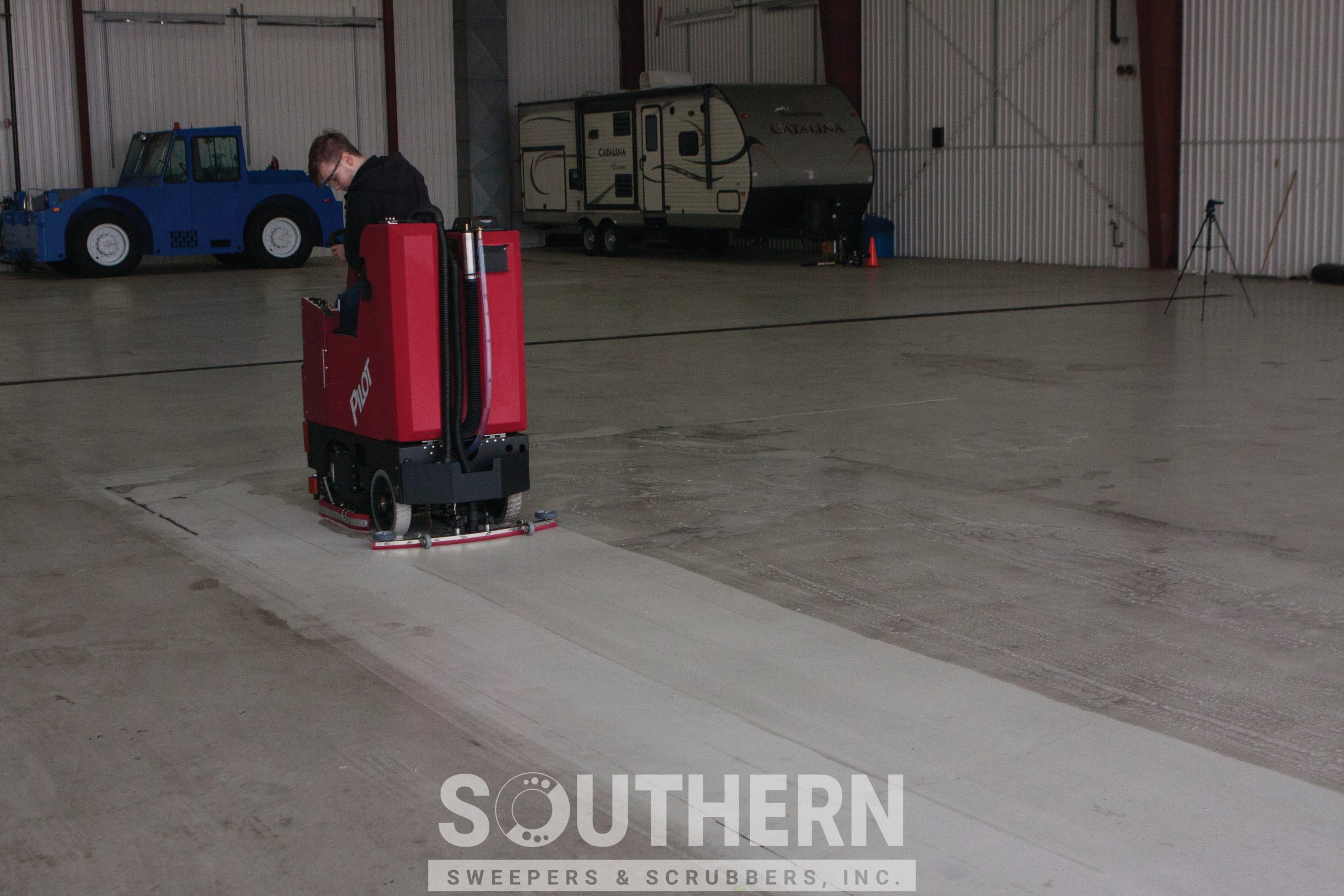

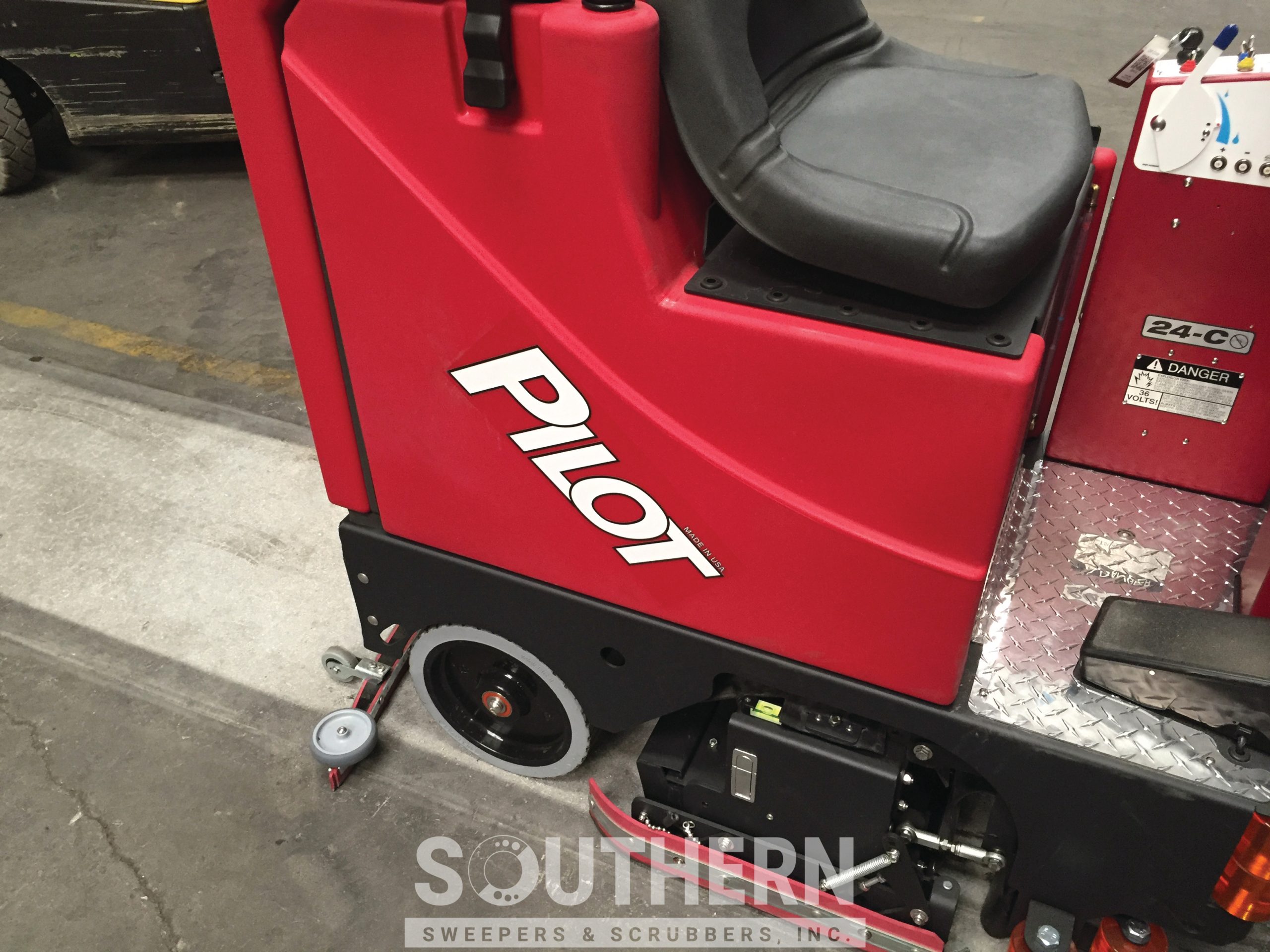

FactoryCat Pilot-HD v3 Floor Scrubber
FactoryCat’s Pilot-HD v3 Floor Scrubber is known for its simple design and durable construction, offering unmatched value for the customer. The FactoryCat Pilot-HD Floor Scrubber is engineered for heavy-duty use in commercial spaces. The Pilot-HD v3 Micro Rider Floor Scrubber comes equipped with a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease.
Built for maneuverability our Pilot-HD v3 battery-powered micro ride-on floor scrubber is the toughest in class. Built on a solid steel, welded frame, solid rear axle, and oversized tires the Pilot-HD stands alone.
Among similar machines, nothing compares to the reliability and performance of a FactoryCat Pilot-HD Floor Scrubber model. The small footprint and low psi on the cleaning surface allow staff to clean in places most ride-on scrubbers cannot go. With the operator onboard the machine it is more maneuverable than a large walk behind an auto scrubber. In fact, many facility managers prefer the FactoryCat Pilot-HD Floor Scrubber for its efficiency in tight spaces.
Your operators will find the Pilot-HD v3 Floor Scrubber is easy to maneuver and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls, making the FactoryCat Pilot-HD Floor Scrubber a smart choice for demanding environments. For outstanding industrial cleaning outcomes, consider the Pilot-HD as your FactoryCat floor scrubber solution of choice.
Used equipment availability changes frequently. Contact us to confirm inventory.
For the best results in industrial cleaning, select the FactoryCat Pilot-HD Floor Scrubber, a powerhouse of performance among factory machines.
| Specification | FactoryCat Pilot-HD v3 |
|---|---|
| Machine Dimensions | |
| Length × Width × Height | 53″ × 31″ × 57″ |
| Weight Without Batteries | 525–575 lbs |
| Weight With Batteries | 825–875 lbs |
| Chassis Construction | 1/8″ steel, powder coated |
| Front Wheels (Diameter × Width) | 8″ × 3″, solid gray, non-marking |
| Rear Wheels (Diameter × Width) | (2) 12″ × 3″, solid black |
| Brush / Pad System | |
| Disk Dimensions | 26″ – (2) 13″28″ – (2) 14″ |
| Disk Motor | (2) 0.75 hp |
| Disk Brush Speed | 270 rpm |
| Optional Motor Upgrade | N/A |
| Cylindrical Dimensions | 25″ – (2) 6″ diameter × 23″29″ – (2) 6″ diameter × 27″ |
| Cylindrical Motor | (2) 0.75 hp |
| Cylindrical Brush Speed | 650 rpm standard / 825 rpm optional |
| Orbital Dimensions | 24″ × 14″28″ × 14″ |
| Orbital Motor | 1.2 hp, 2,500 rpm |
| Brush Down Pressure | Up to 150 lbs / 180 lbs actuator rating |
| Power System | |
| System Voltage/Amps | 36 VDC / 175 Ah wet |
| Optional Battery | Up to 225 Ah wet / 200 Ah AGM |
| Run Time | Up to 3.5 hours |
| Drive System | |
| Power | 0.75 hp, all gear/sealed |
| Forward Speed | 0–320 ft/min / 0–3.6 mph |
| Scrubbing Speed | 0–256 ft/min / 0–2.9 mph |
| Reverse Speed | 0–230 ft/min / 0–2.6 mph |
| Solution / Recovery System | |
| Solution Tank Capacity | 22 gallons, with graduated sight tube |
| Solution Flow / Filter | 0–0.5 GPM / stainless inline |
| Recovery Tank Capacity | 23 gallons, 1.5″ diameter drain hose |
| Demisting Chamber | 1.25 gallons |
| Drain Saver | 130 cubic inches |
| Vacuum Power | 1.0 hp / 2-stage / 6.6″ diameter |
| Water Lift / Airflow | 73″ / 96 cfm |
| General | |
| Productivity – Theoretical | Up to 40,000 sq. ft./hr. |
| Productivity – Practical | Up to 18,518 sq. ft./hr. |
RESOURCES
If you don’t see the resource you need, please contact us directly. Additionally, let us know if you want more details about the FactoryCat Pilot-HD Floor Scrubber models or need specs for a factory scrubber solution.
