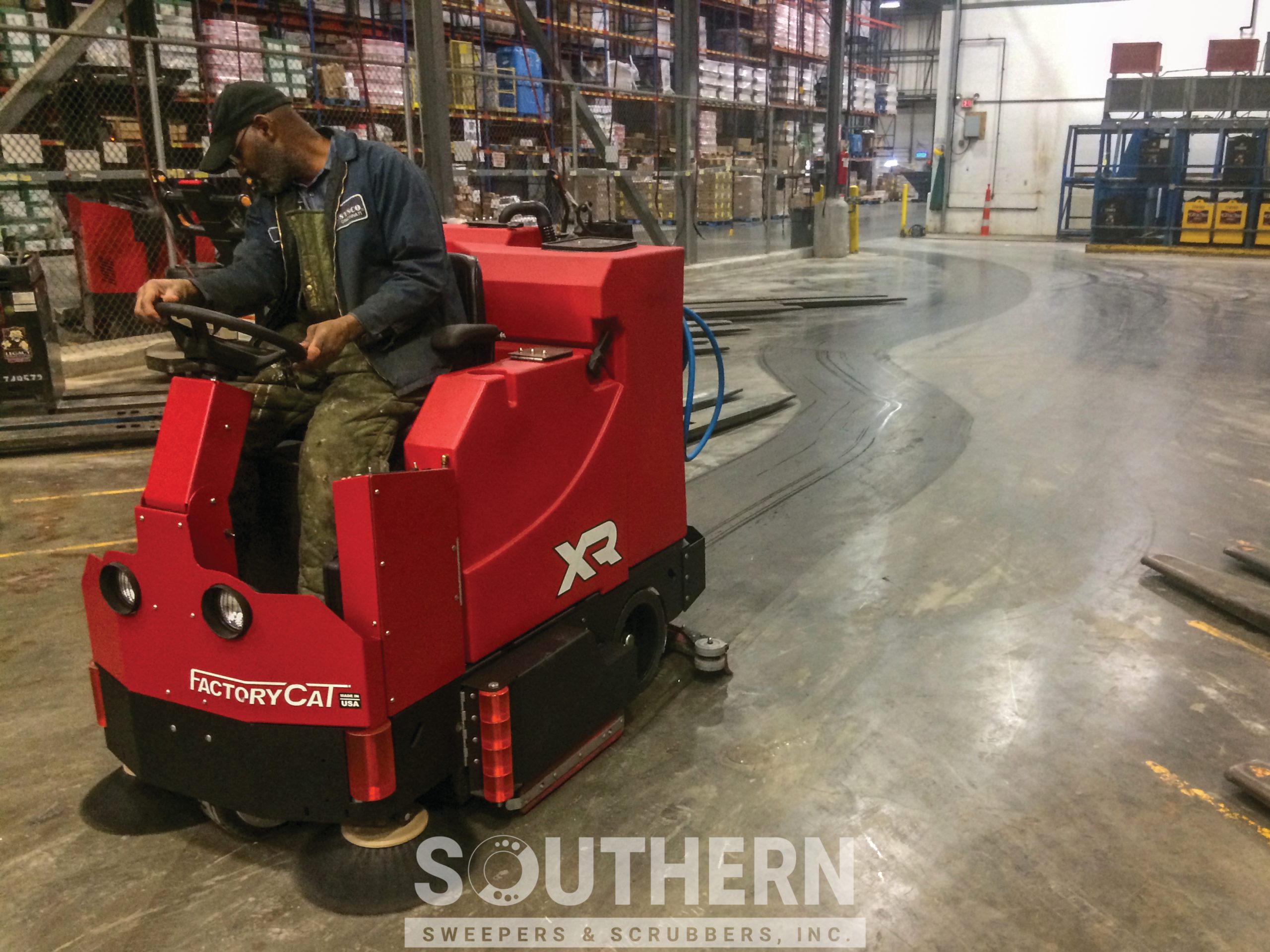

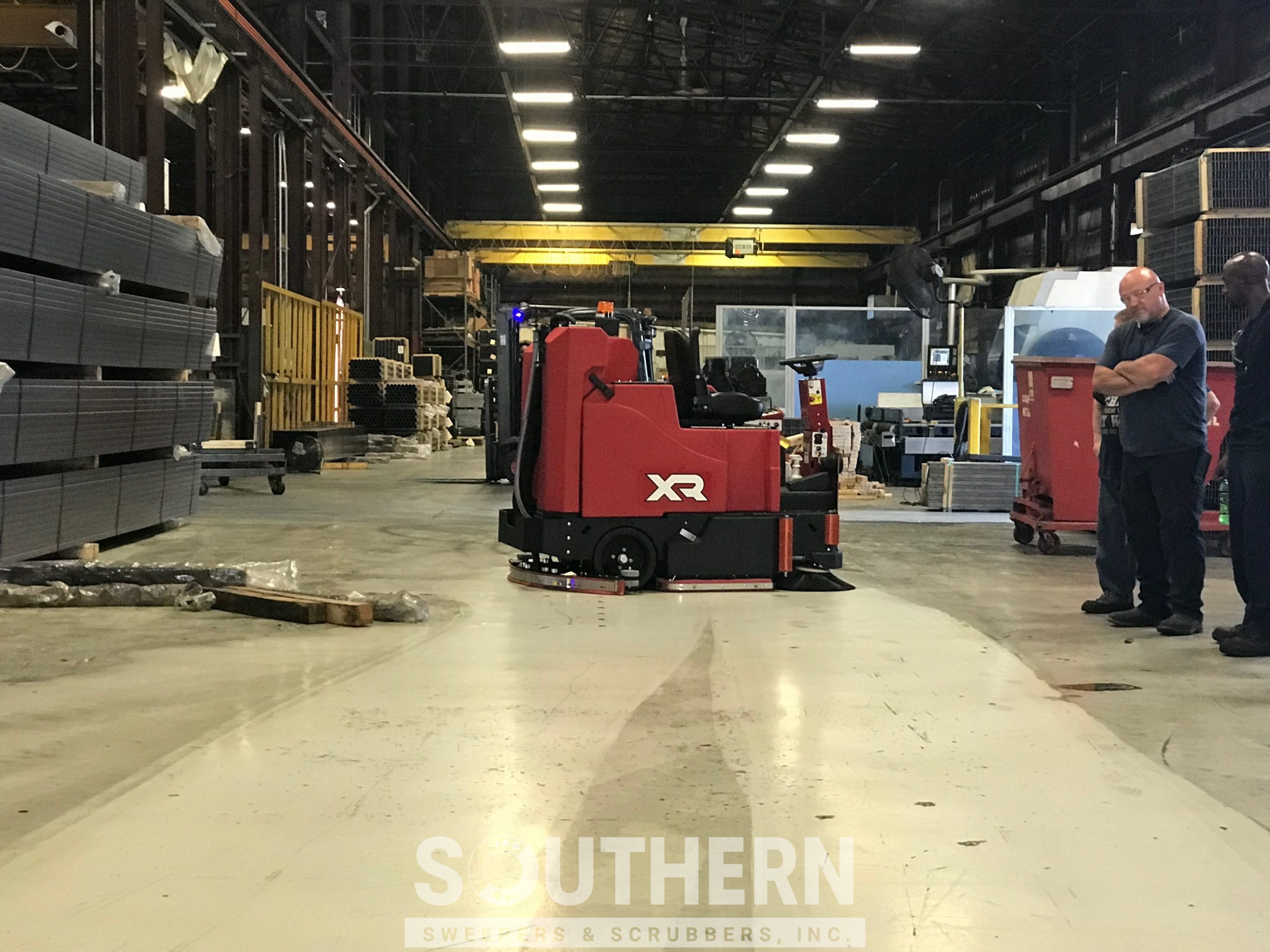

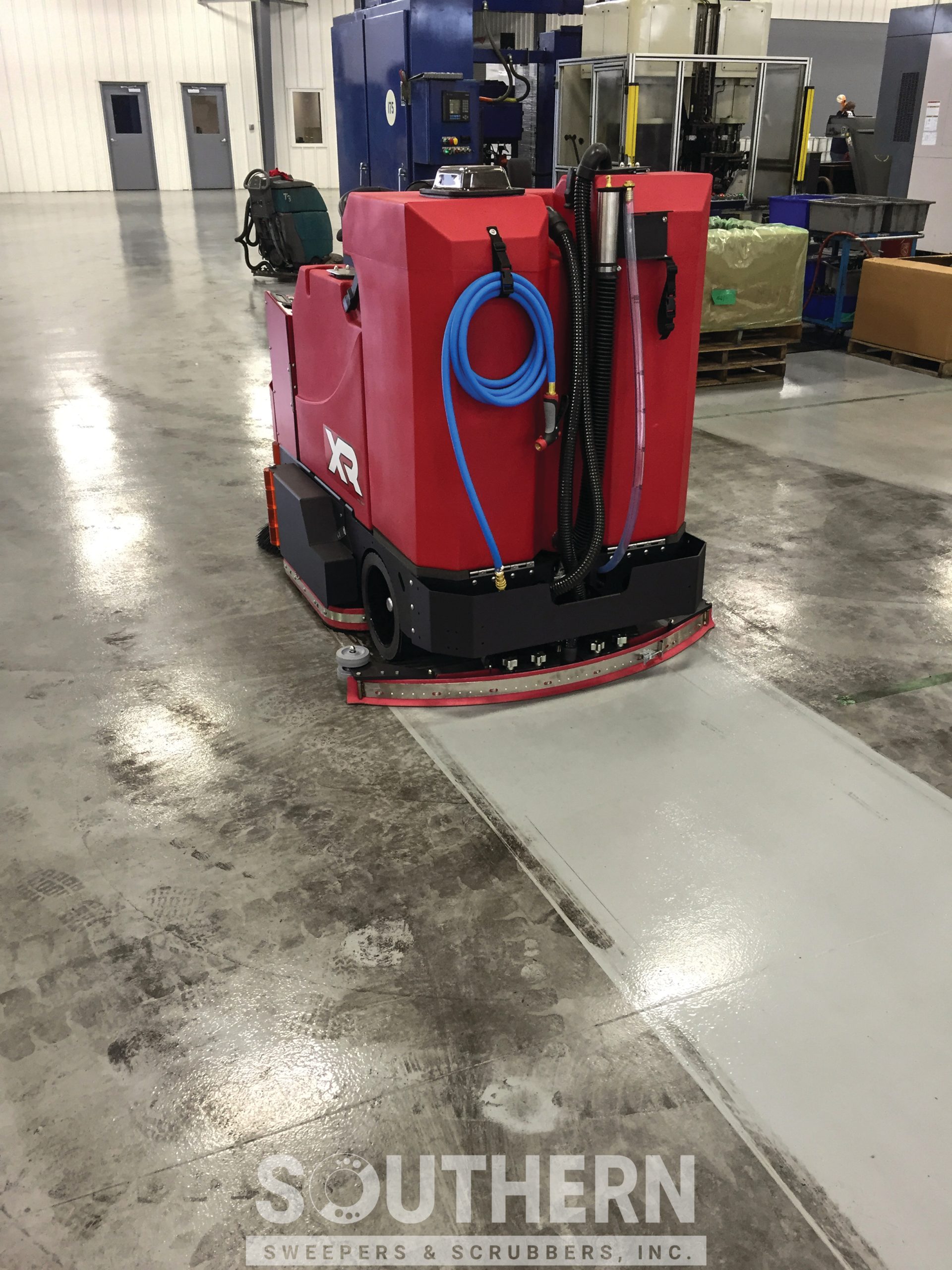

FactoryCat XR v2.0 Industrial Rider Scrubber
Factory Cat’s XR v2.0 Rider Floor Scrubbers are tough, compact scrubbers that offer the great productivity of Rider machines but with better maneuverability than Walk Behinds. The Factory Cat XR v2.0 Rider Floor Scrubbers have a powerful drive motor that can climb steep ramps and comes standard with heavy-duty tires. Features of the drive system include an automatic parking brake and reducing in transport speed while scrubbing or reversing to maintain the life of the squeegees.
The Central Command II systems on all of our Rider Scrubbers include an LCD readout, onboard machine diagnostics, and 3 different hour meters. Also, if machine batteries become too discharged, the XR automatically shuts down all systems except “transport”, enabling the operator to still make it back to the charge station.
If you are looking for a battery-powered ride-on floor scrubber for cleaning large spaces quickly, the XR is built for the task. With the large solution and recovery tanks, a wide scrub path, and dual vacuum motors standard, this ride-on auto scrubber can clean large facilities, fast!
Used equipment availability changes frequently. Contact us to confirm inventory.
| Specification | FactoryCat XR v2.0 |
|---|---|
| Machine Dimensions | |
| Length × Width × Height | 77″ × 43″ × 59″ |
| Weight Without Batteries | 1,200–1,250 lbs |
| Weight With Batteries | 1,925–1,975 lbs |
| Chassis Construction | 3/16″ steel, powder coated |
| Front Wheels (Diameter × Width) | 12″ × 4″, solid black |
| Rear Wheels (Diameter × Width) | (2) 14″ × 5″, solid black |
| Brush / Pad System | |
| Disk Dimensions | 40″ – (2) 20″45″ – (2) 23″ |
| Disk Motor | (2) 1 hp |
| Disk Brush Speed | 200 rpm |
| Optional Motor Upgrade | N/A |
| Cylindrical Dimensions | 40″ – (2) 7″ diameter × 38″46″ – (2) 7″ diameter × 44″ |
| Cylindrical Motor | (2) 1.5 hp, 350 rpm |
| Cylindrical Brush Speed | 825 rpm |
| Orbital Dimensions | N/A |
| Orbital Motor | N/A |
| Brush Down Pressure | Up to 250 lbs / 500 lbs actuator rating |
| Power System | |
| System Voltage/Amps | 36 VDC / 325 Ah wet |
| Optional Battery | Up to 425 Ah wet / 400 Ah AGM |
| Run Time | Up to 5 hours |
| Drive System | |
| Power | 1.0 hp, all gear/sealed |
| Forward Speed | 0–320 ft/min / 0–3.6 mph |
| Scrubbing Speed | 0–256 ft/min / 0–2.9 mph |
| Reverse Speed | 0–230 ft/min / 0–2.6 mph |
| Solution / Recovery System | |
| Solution Tank Capacity | 65 gallons, with graduated sight tube |
| Solution Flow / Filter | 0–1.0 GPM / stainless inline |
| Recovery Tank Capacity | 78 gallons, 2″ diameter drain hose |
| Demisting Chamber | 1.25 gallons |
| Drain Saver | 130 cubic inches |
| Vacuum Power | (2) 1.0 hp / 2-stage / 6.6″ diameter |
| Water Lift / Airflow | 78″ / 180 cfm |
| General | |
| Productivity – Theoretical | Up to 63,000 sq. ft./hr. |
| Productivity – Practical | Up to 29,374 sq. ft./hr. |
