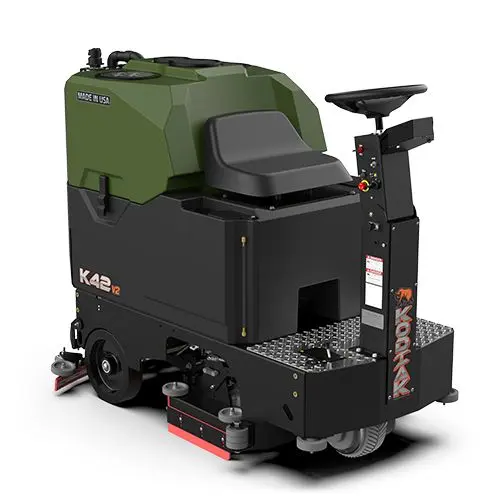

Kodiak K42 v2 Disk
The Kodiak K42 v2 Disk is a ride-on floor scrubber built for efficinecy. This machine is designed to handle uneven floors & clean large areas with consistent results.
Used equipment availability changes frequently. Contact us to confirm inventory.
| Specification | K42 v2 |
|---|---|
| Machine Dimensions | |
| Length × Width × Height | 62″ × 36″ × 52″ |
| Step-Up Height | 17″ |
| Chassis Construction | 3/16″ steel, powder coated |
| Front Wheels (Diameter × Width) | 10″ × 3″, non-marking gray |
| Rear Casters (Diameter × Width) | 12″ × 3″, non-marking gray |
| Brush System | |
| Disk Cleaning Paths | 28″ and 32″ |
| Cylindrical Cleaning Paths | 26″ and 30″ |
| Disk Scrub Motors | (2) 0.75 hp |
| Disk Brush Speed | 270 rpm |
| Power System | |
| System Voltage | 24 VDC |
| Standard Battery | 240 Ah wet |
| Battery Run Time | Up to 4 hours |
| Charger | Onboard 27-amp charger |
| Traction Drive System | 0.75 hp, all gear/sealed |
| Solution/Recovery System | |
| Solution Tank Capacity | 45 gallons |
| Solution Flow/Filter | 0–0.6 GPM / stainless inline |
| Recovery Tank Capacity | 46 gallons |
| Demisting Chamber | 1.25 gallons |
| Vacuum Motor | 0.8 hp / 24 V / 3-stage |
| Vacuum Water Lift/Airflow | 70″ / 70 cfm |
| General | |
| Sound Level | 75 dBA |
| Configuration | Squeegee Width | Theoretical Productivity | Practical Productivity |
|---|---|---|---|
| 28″ Dual Disk | 37″ | 38,500 sq. ft./hr. | 18,000 sq. ft./hr. |
| 32″ Dual Disk | 41″ | 44,000 sq. ft./hr. | 20,500 sq. ft./hr. |
| 26″ Cylindrical | 37″ | 35,750 sq. ft./hr. | 16,000 sq. ft./hr. |
| 30″ Cylindrical | 41″ | 41,250 sq. ft./hr. | 19,500 sq. ft./hr. |
