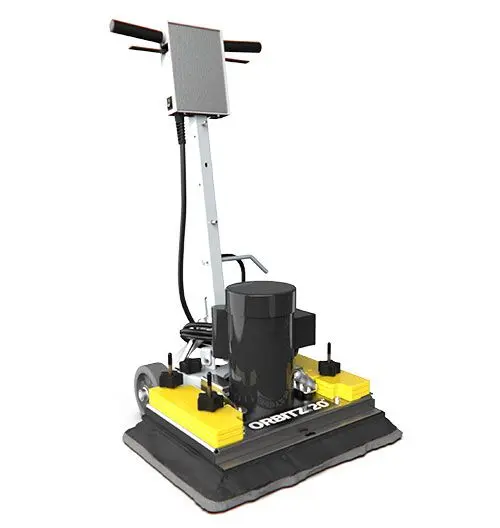

Kodiak ORBITZ 20″

The Kodiak Ortibitz floor machine lets operators easily clean many types of floor surfaces. The orbital technology allows for chemical-free stripping. Additionally, tool-free pad changes make switching applications easy & simple. The heavy duty wheels make for easy transport.

Used equipment availability changes frequently. Contact us to confirm inventory .

Technical Specifications	20″ Floor Machine AC
Scrub Head Length	20 in
Scrub Head Width	14 in
Scrub Head Height	2.75 in
Handlebar Length	37.25 in
Handlebar Diameter	1.5 in
Total Assembled Weight	144 lbs
Optional Weight Capacity	232 lbs
Cleaning Width	20 in
Chassis Construction	10-gauge steel
Scrub Head Construction	7-gauge stainless steel
Handlebar Grips	Padded
Wheels	Two 6 × 2 in non-marking wheels
Pad Dimensions	20 × 14 in
Lower Deck Isolators	Four, 1.5 in diameter × 2.25 in high
Upper Deck Isolators	Ten, 1 in diameter × 0.5 in high
Motor Power	1.5 hp / 1,119 W
Motor Speed	3,450 rpm at 60 Hz / 2,850 rpm at 50 Hz
Current Draw	7 amps at 120 VAC / 60 Hz
System Voltage	120 VAC, 50–60 Hz / 240 VAC, 50–60 Hz
Cord Length	50 ft, 14 gauge
Sound Level	69 dBA
Dust Skirt	Standard
