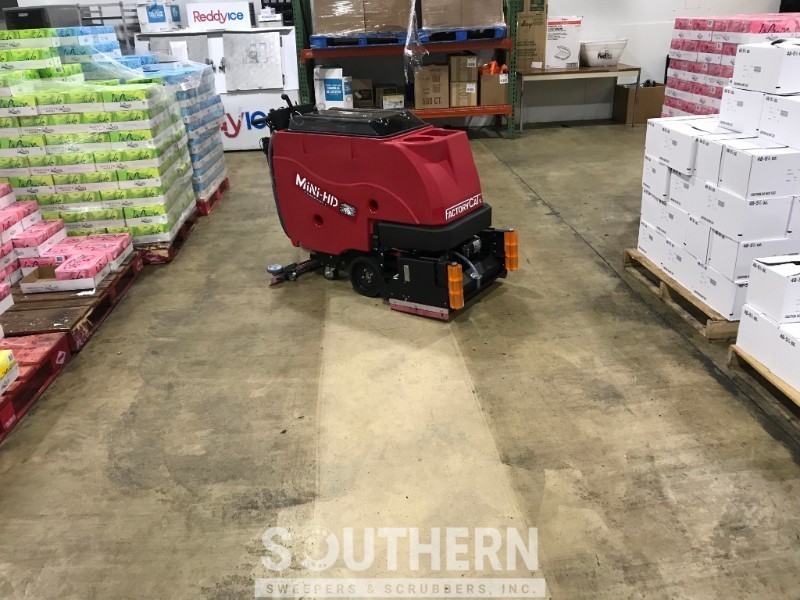

FactoryCat Mini-HD v2.1 Floor Scrubber
FactoryCat’s Mini-HD v2.1 Floor Scrubber is known for its simple design and durable construction, offering unmatched value for the customer.
The Mini-HD v2.1 Walk Behind Floor Scrubber comes equipped with a Traction drive which includes a powerful all-gear transaxle for climbing ramps and max operator ease.
Your operators will find the Mini-HD v2.1 is easy to maneuver into tight areas and simple to service. The deck is protected by steel guards and large polyurethane rollers to keep the unit from marking walls.
Used equipment availability changes frequently. Contact us to confirm inventory.
| Specification | Mini-HD v2 Series |
|---|---|
| Machine Dimensions | |
| Length × Width × Height | 56″ × 28″ × 43″ |
| Weight Without Batteries | 393–443 lbs |
| Weight With Batteries | 625–675 lbs with 210 Ah batteries |
| Chassis Construction | 3/16″ steel, powder coated |
| Front Wheels (Diameter × Width) | (2) 10″ × 2.5″, solid black |
| Rear Casters (Diameter × Width) | (2) 4″ × 2″, non-marking gray |
| Brush / Pad System | |
| Disk Dimensions | 26″ – (2) 13″28″ – (2) 14″ |
| Disk Motor | (2) 1.0 hp / 350 rpm |
| Optional Motor Upgrade | N/A |
| Cylindrical Dimensions | 25″ – (2) 6″ diameter × 23″29″ – (2) 6″ diameter × 27″ |
| Cylindrical Motor | 25″ – (2) 0.75 hp29″ – (2) 1.0 hp |
| Cylindrical Brush Speed | 750 rpm |
| Orbital Dimensions | 24″ × 14″28″ × 14″ |
| Orbital Motor | 1.0 hp / 2,500 rpm |
| Brush Down Pressure | Up to 175 lbs / 500 lbs actuator rating |
| Power System | |
| System Voltage/Amps | 24 VDC / 210 Ah wet |
| Optional Battery | 245 Ah wet / 250 Ah AGM |
| Battery Charger | Onboard charger included |
| Run Time | Up to 3.5 hours |
| Drive System | |
| Power | 0.75 hp, all gear/sealed |
| Forward Speed | 0–290 ft/min / 0–3.3 mph |
| Scrubbing Speed | 0–229 ft/min / 0–2.6 mph |
| Reverse Speed | 0–202 ft/min / 0–2.3 mph |
| Solution / Recovery System | |
| Solution Tank Capacity | 21 gallons, with graduated sight tube |
| Solution Flow / Filter | 0–0.7 GPM / stainless inline |
| Recovery Tank Capacity | 23 gallons, 1.5″ diameter drain hose |
| Small Tank Capacity | 16-gallon solution tank17-gallon recovery tank |
| Demisting Chamber | 1.25 gallons |
| Drain Saver | 30 cubic inches |
| Vacuum Power | 0.8 hp / 3-stage / 5.7″ diameter |
| Water Lift / Airflow | 68″ / 72 cfm |
| General | |
| Productivity – Theoretical | Up to 29,029 sq. ft./hr. |
| Productivity – Practical | Up to 13,454 sq. ft./hr. |
