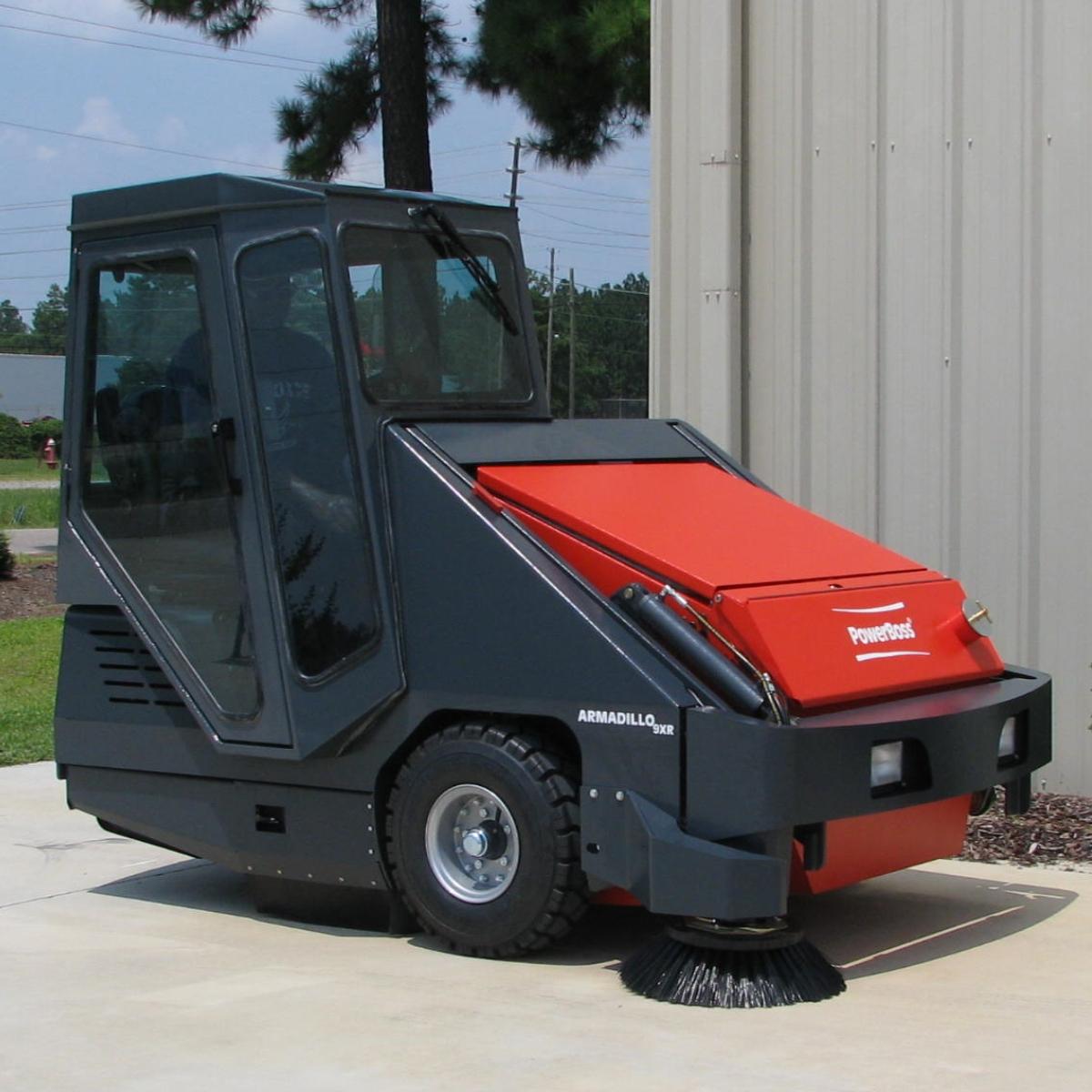

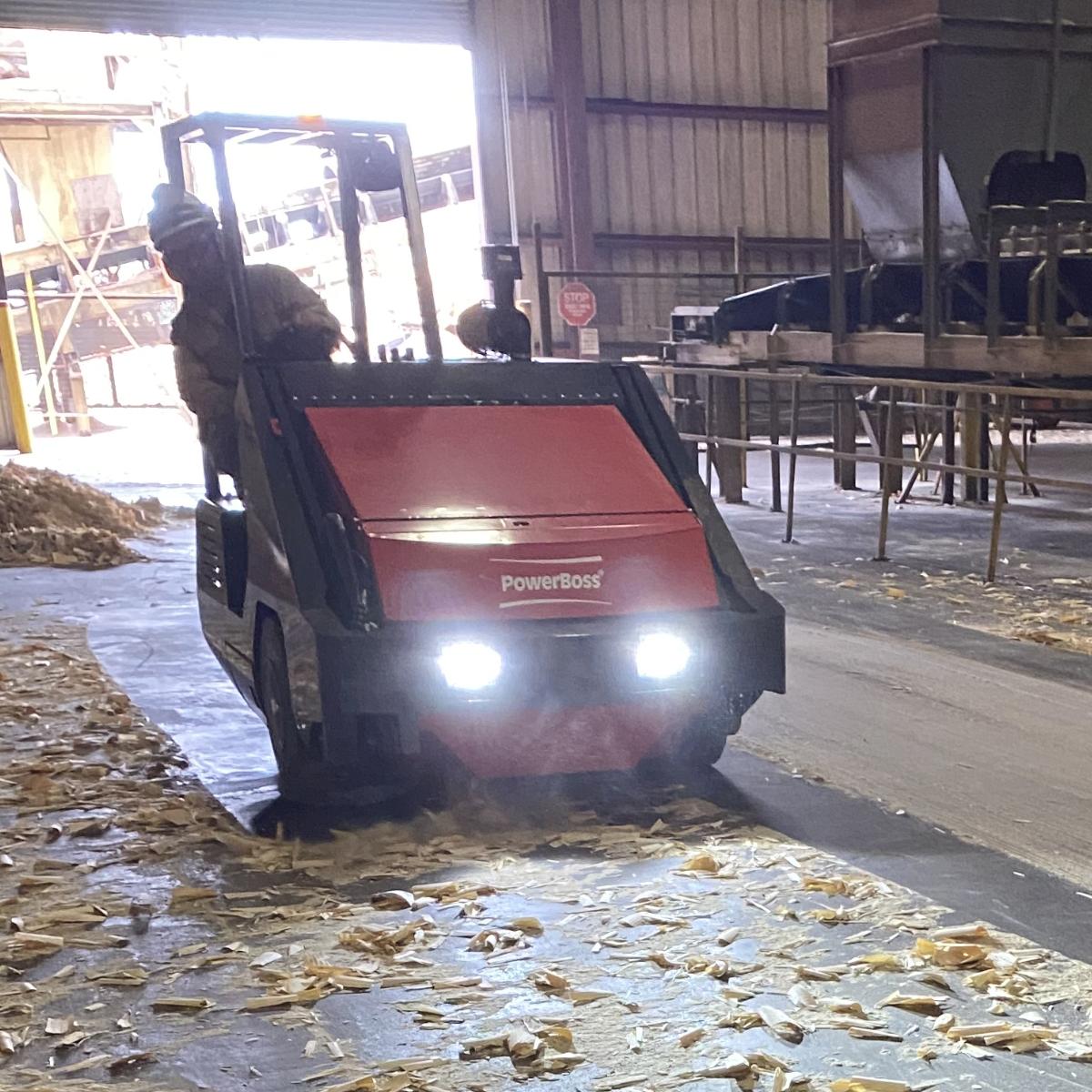

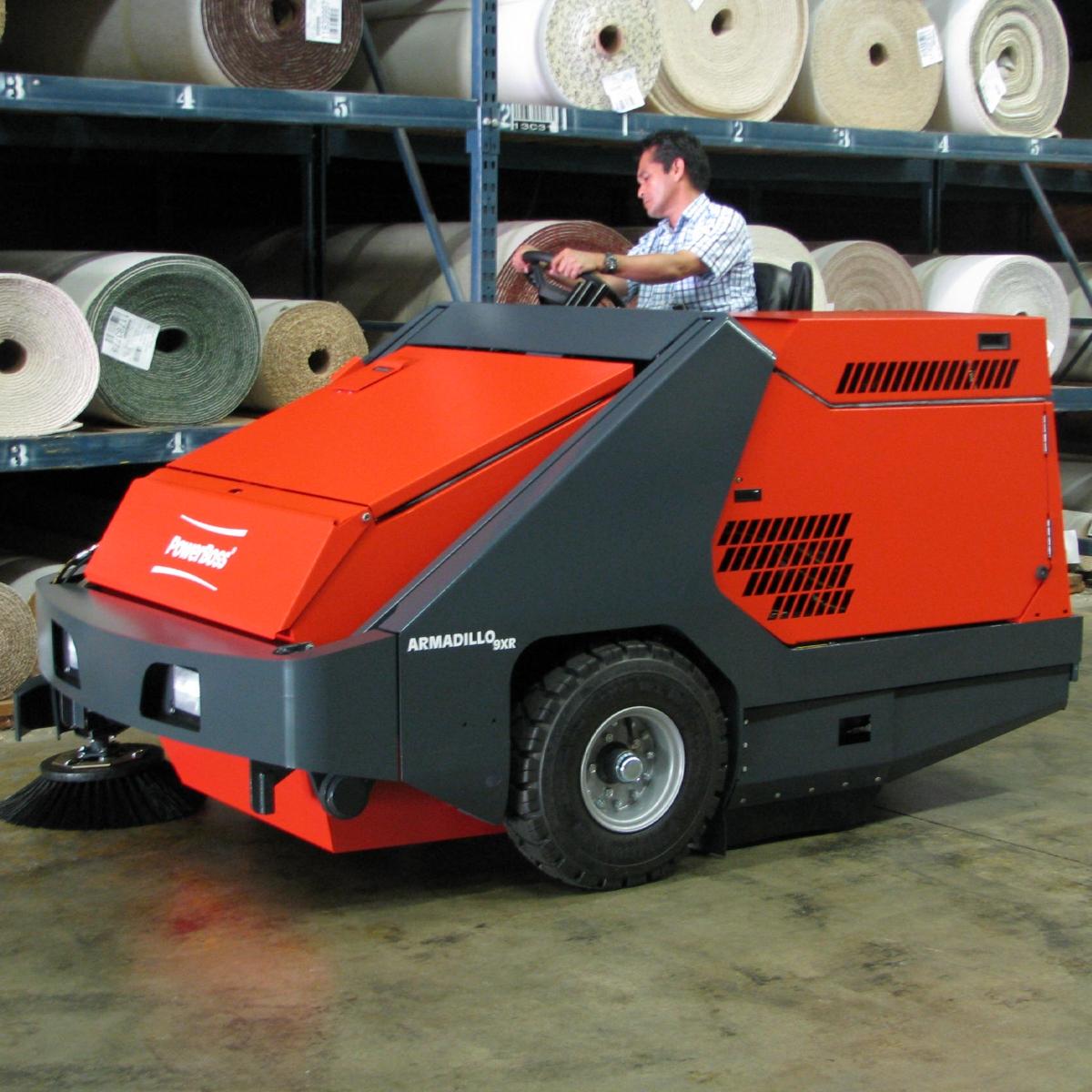

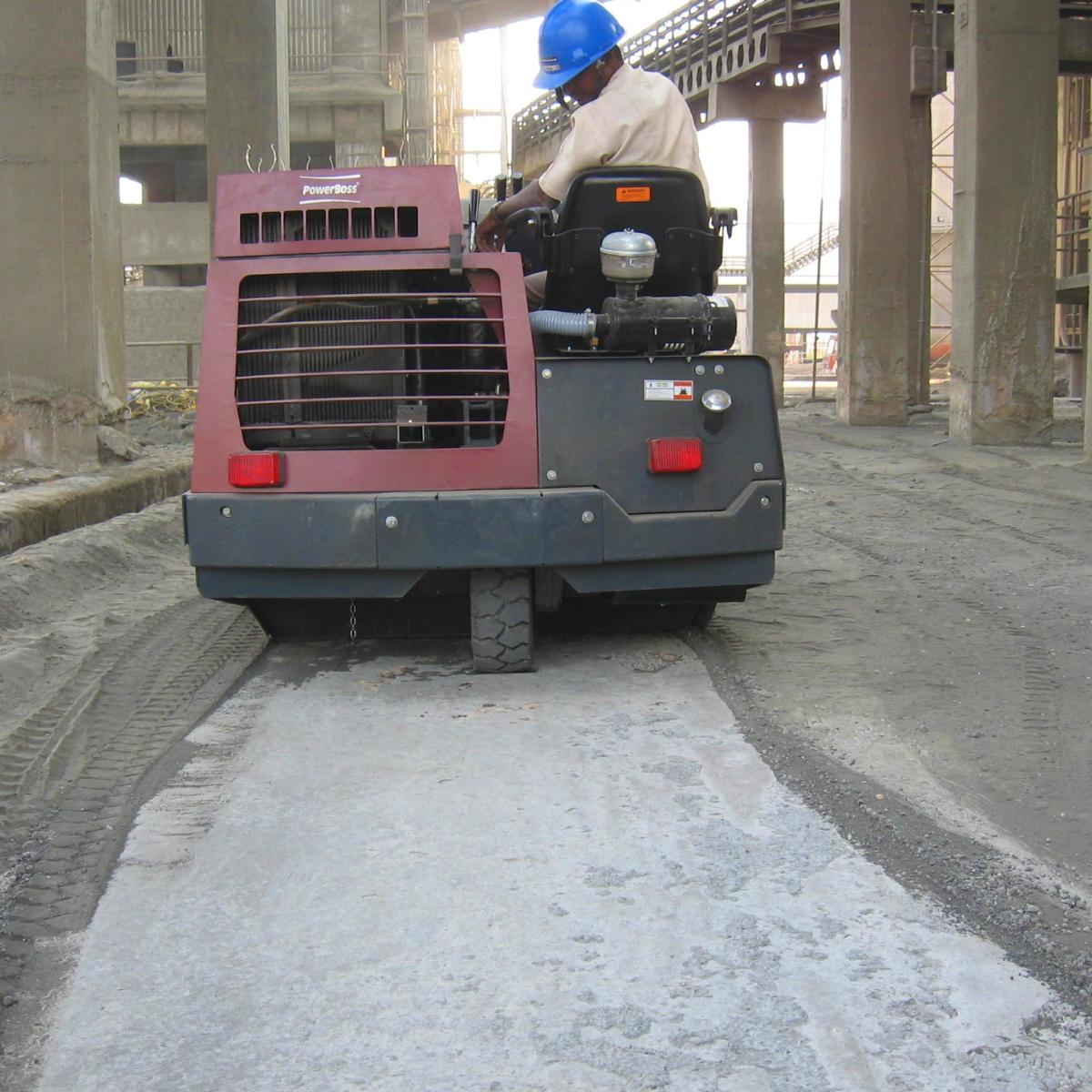

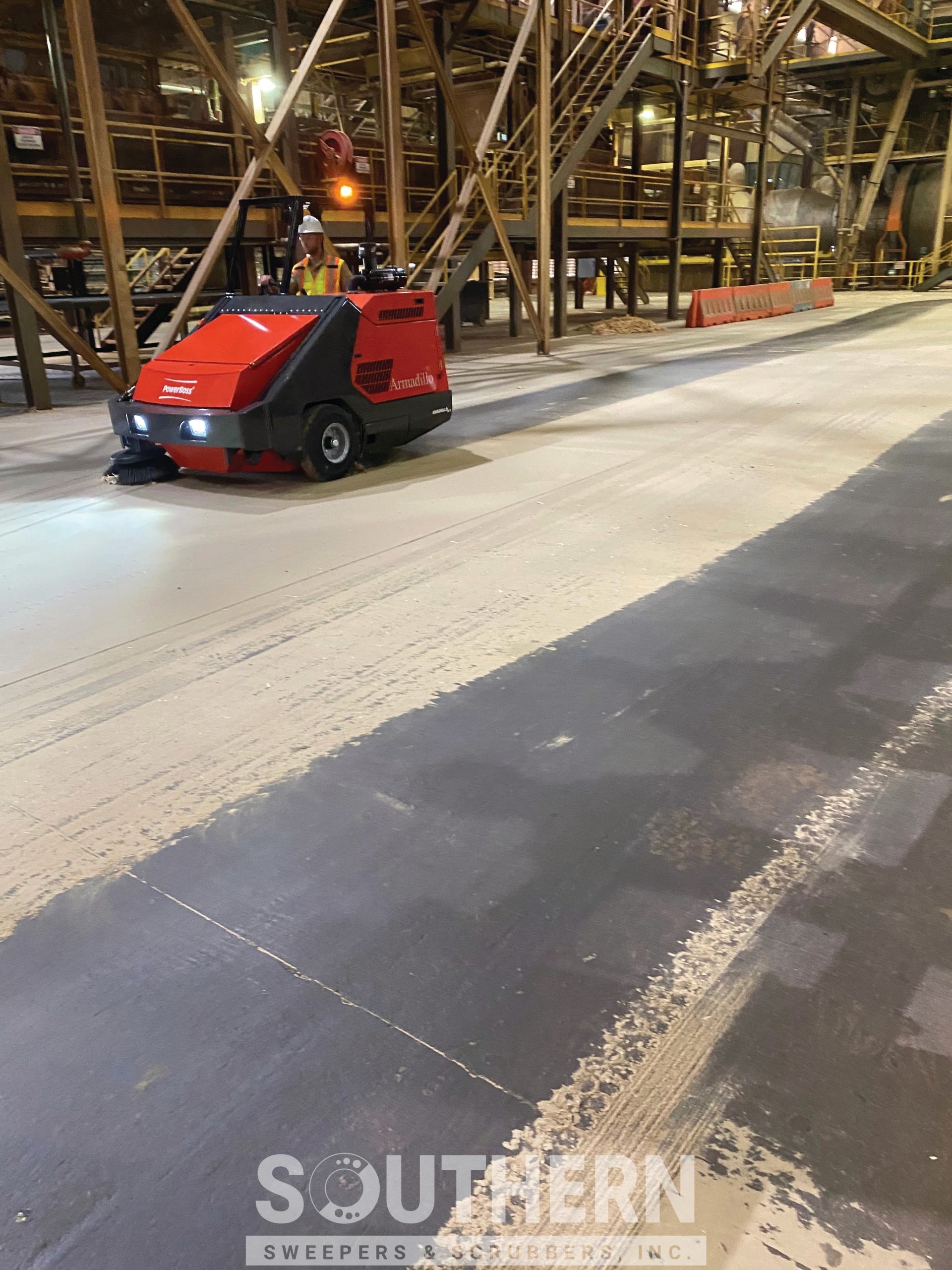

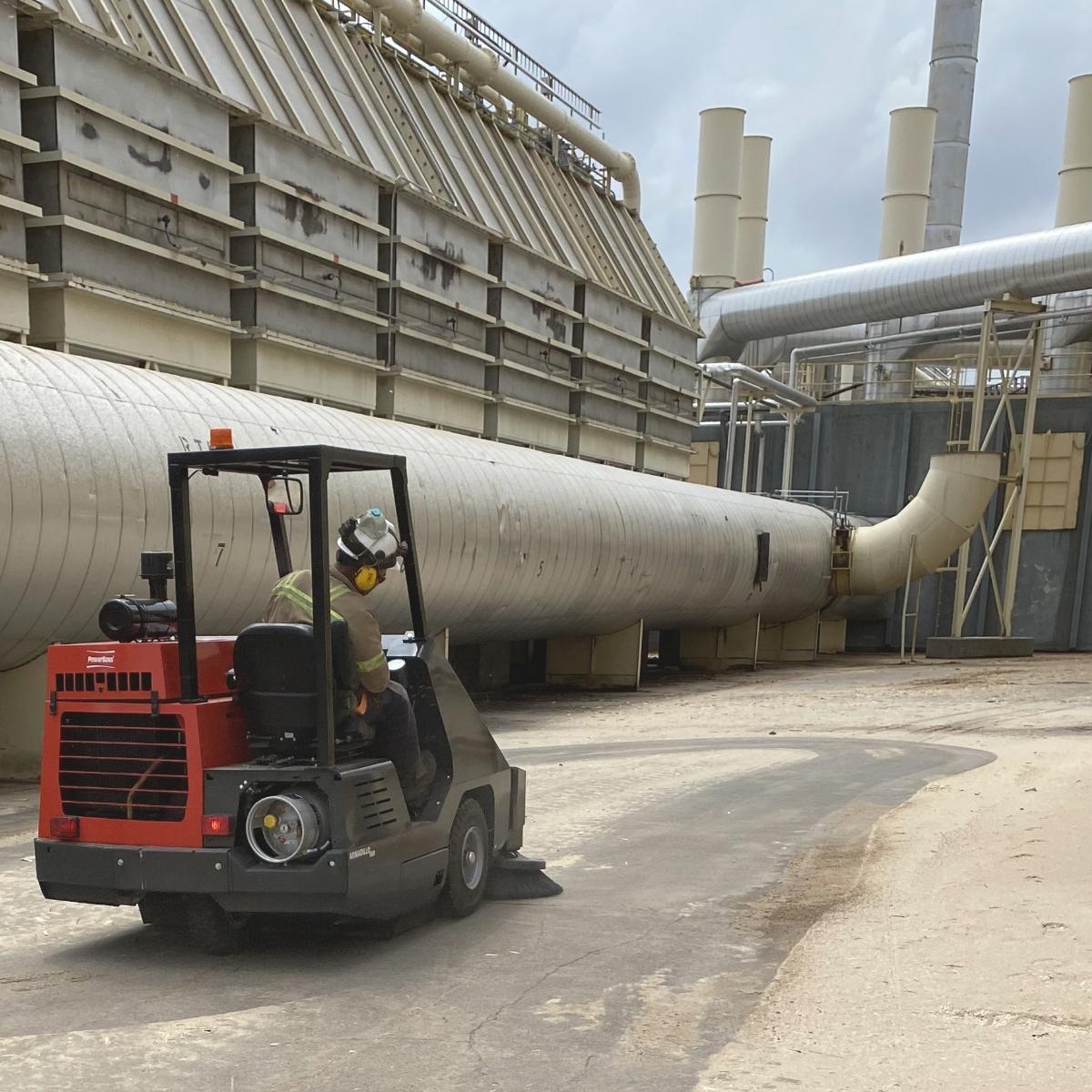

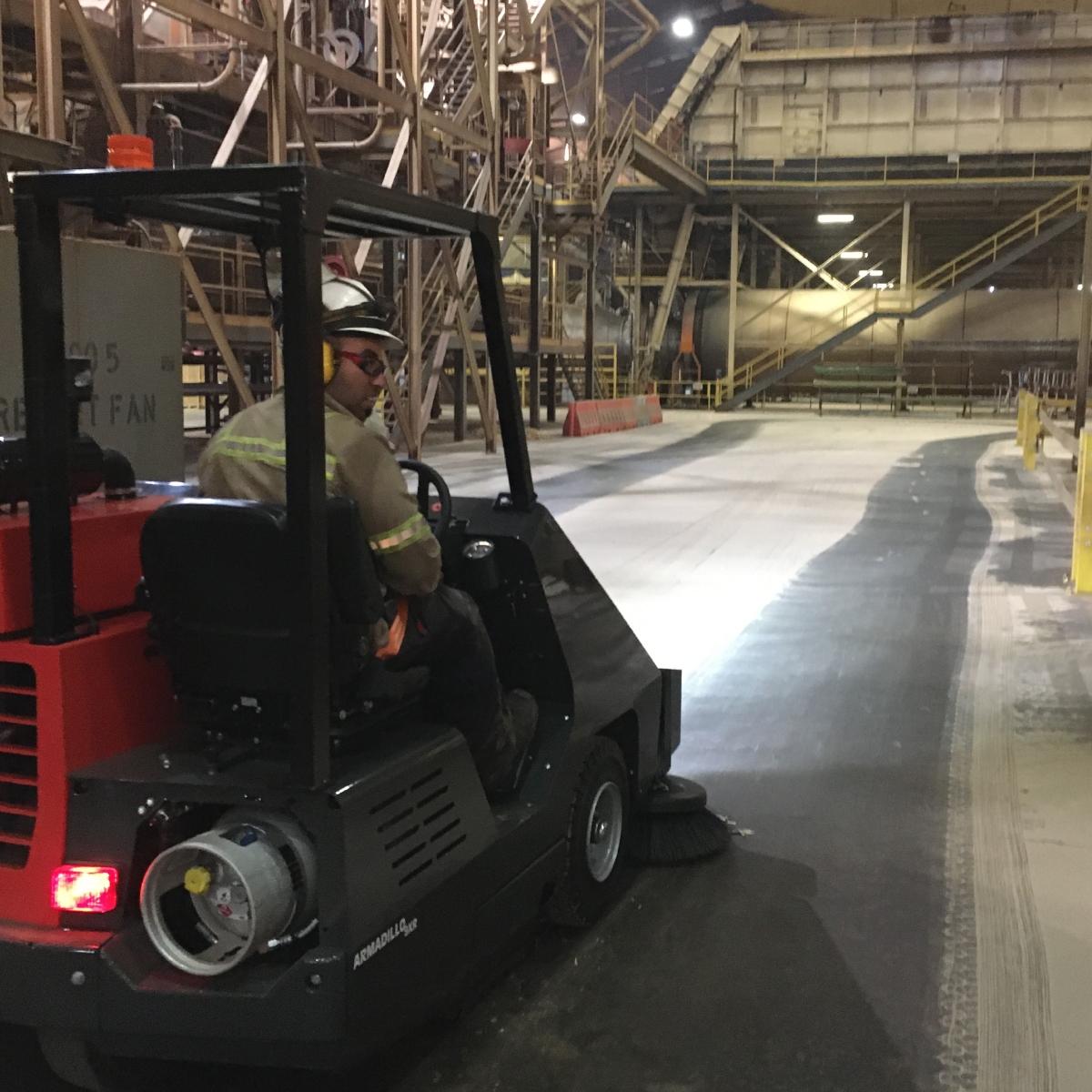

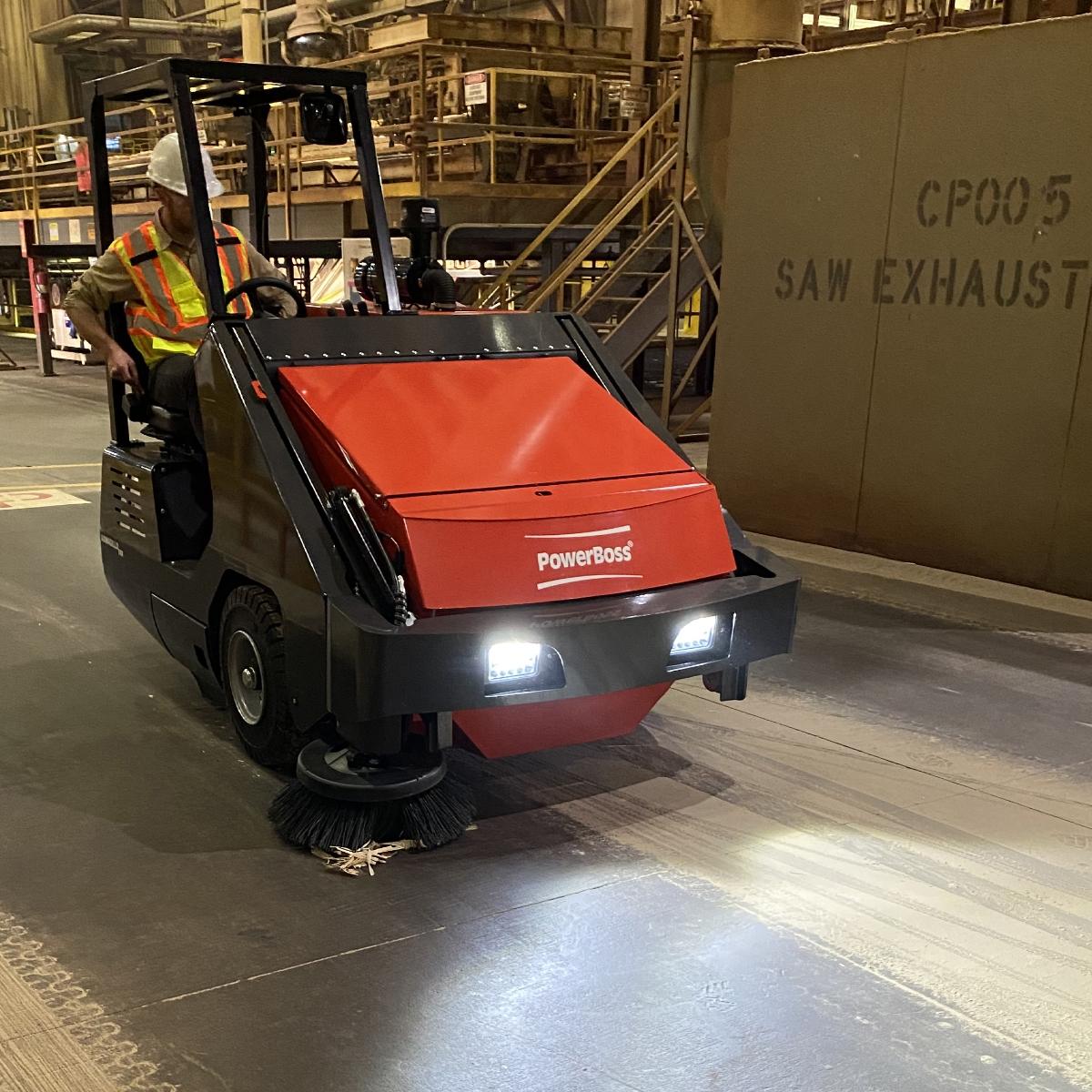

PowerBoss Armadillo 9x Sweeper
The PowerBoss 9x offers durable, unmatched sweeping performance and superior Kubota Tier IV – LPG, Gasoline and Diesel engine reliability. The all-steel agricultural grade frame/exterior ensures the 9x is built to withstand the most severe applications.
KEY FEATURES
- Advanced safety: shock-mounted bumpers & hydraulic brakes
- Dual-phase dust filtration system and air filters to prevent dust exhaust
- Heavy-duty retractable front sweeping brooms
- Ergonomic comfort design for operator’s chair
- Tilted power steering drive train
- Available in biodiesel, diesel, or battery-powered options
Ideal for commercial and industrial facilities and complexes of all sizes, investing in a PowerBoss Armadillo 9X floor sweeper ensures a clean, debris-free environment for your employees and visitors. Give our knowledgeable, experienced professionals a call at Southern Sweepers & Scrubbers, Inc., and let us help you determine if this floor sweeper is right for your business.
Used equipment availability changes frequently. Contact us to confirm inventory.
| Technical Specifications | PowerBoss 9X |
|---|---|
| Length | 105 in |
| Width | 64 in |
| Height (Without OHG) | 55.5 in |
| Height (With OHG) | 81 in |
| Operating Weight | 3,500 lbs |
| Turning Radius | 110 in |
| Gradeability | 16% |
| Engine Manufacturer | Kubota |
| Engine Options | V1505 (Diesel), V1605 (LP/Gas) |
| Number of Cylinders | 4 |
| Engine Horsepower | Diesel: 25 hp • LP: 48.3 hp • Gas: 49.6 hp |
| Drive | Rear |
| Sweeping Principle | Direct |
| Sweep Width (1 Side Brush) | 64 in |
| Sweep Width (2 Side Brushes) | 78 in |
| Theoretical Sweeping Performance | 184,800 sq ft/hr |
| Main Brush Width | 48 in |
| Hopper Volume Capacity | 22 cu ft |
| Hopper Weight Capacity | 1,500 lbs |

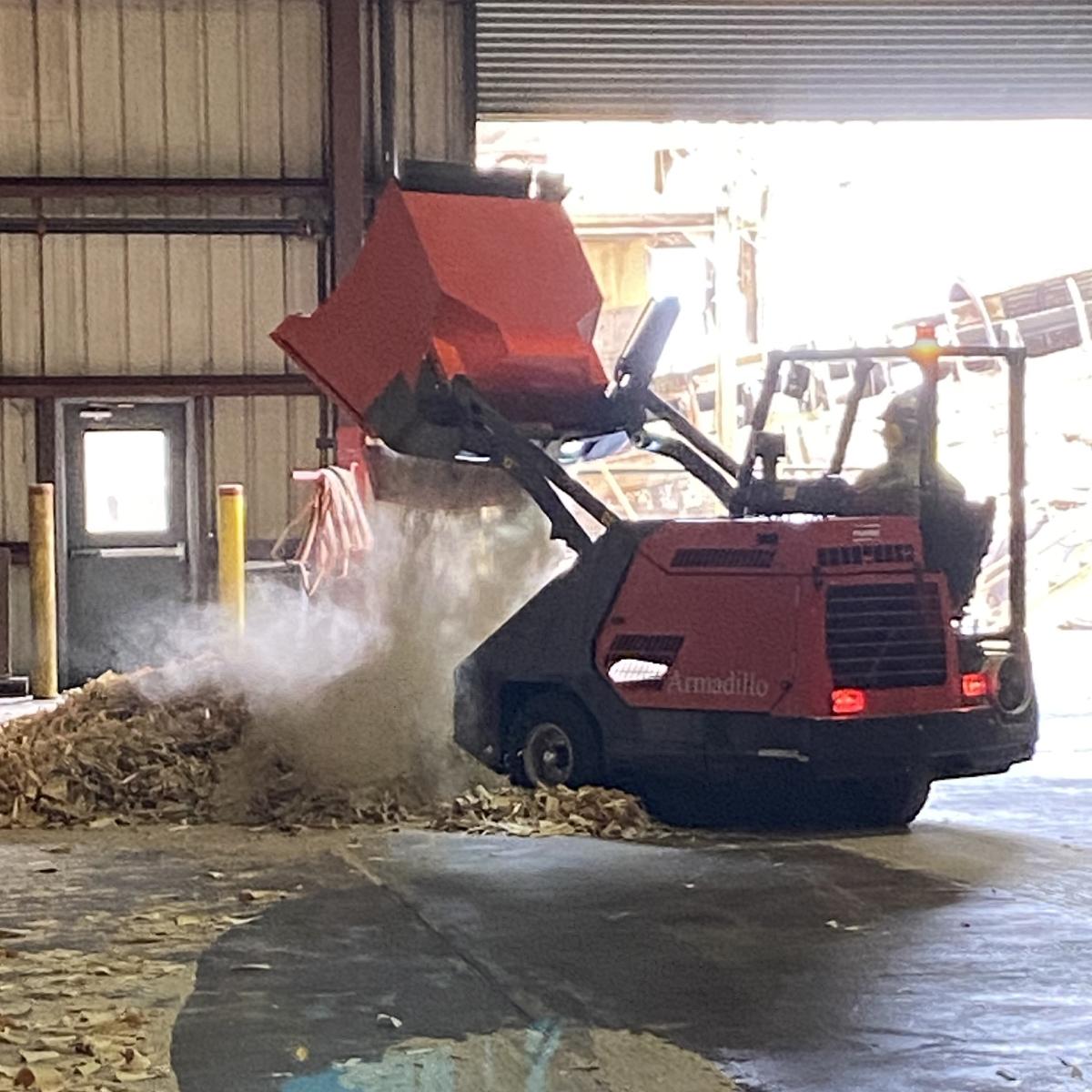

| Dump Type | Multi-Level |
| Dump Height | 64 in |
| Dump Position | RTR |
| Filter Type | Panel |
| Filter Surface Area | 110 sq ft |
| Filtration (Standard) | 1 micron |
RESOURCES
PRODUCT DOWNLOADS
- Armadillo 9x Brochure
- Armadillo 9x User Manual
- Parts Catalog
If you don’t see the resource you need, please contact us directly.
