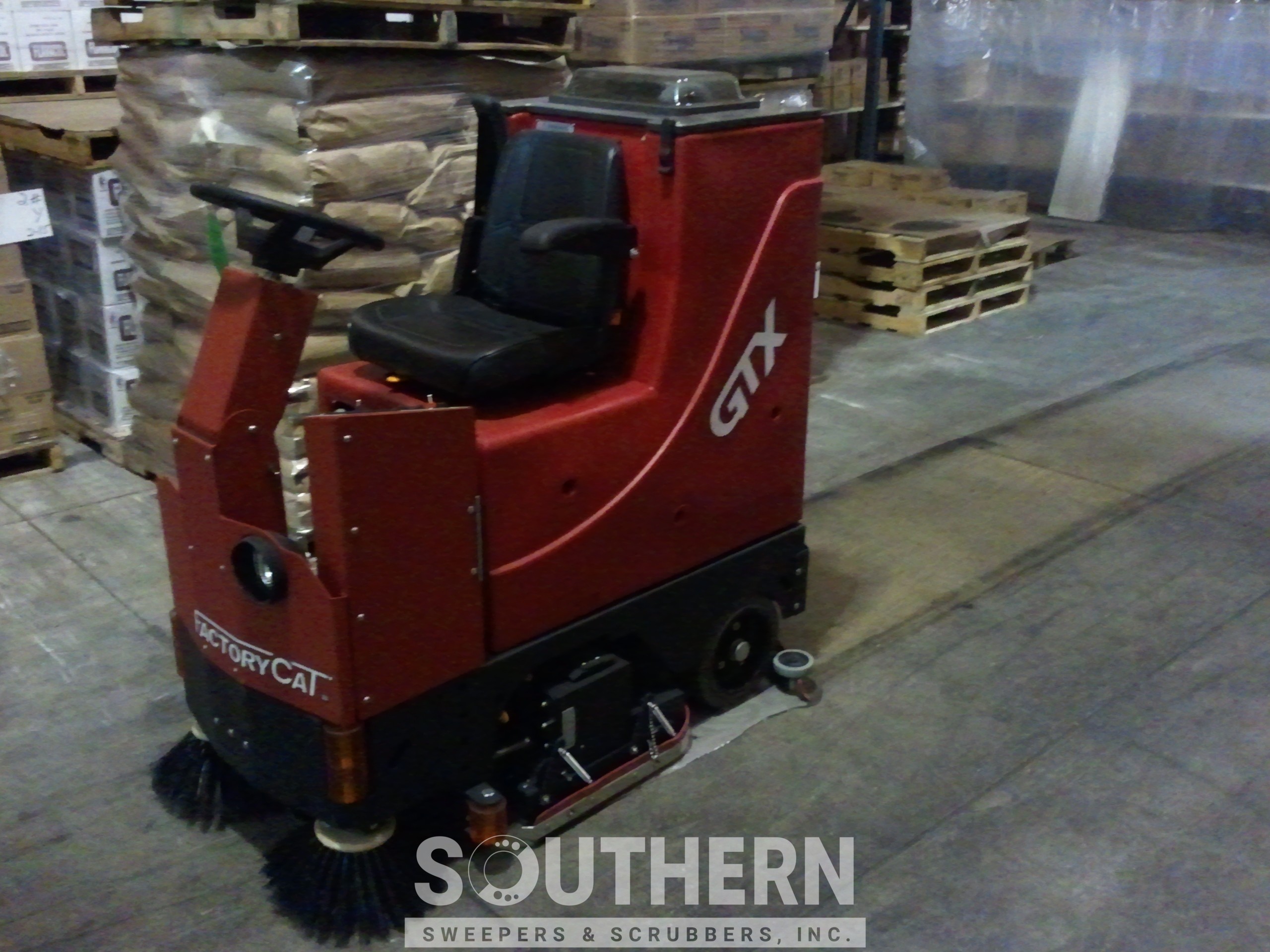

FactoryCat GTX v2.2 Rider Floor Scrubber
Navigation of your facility is easy with this compact ride-on auto scrubber. Say, “so long” to the fatigued operator from walking behind a traditional auto scrubber. With this ride-on auto scrubber, your staff will clean more square footage during their shift and still have the time and energy to do additional work.
With impressive down pressure and brush speed, this machine cleans your toughest dirt. Available in 26”(68cm) – 33”(84cm) scrub width.
Compact floor scrubbers are used everywhere there are medium and large spaces to clean. Many machines in the compact ride-on scrubber market are light-duty and majority plastic, lasting only 3 – 5 years.
The GTX v2.2 sits atop our signature welded steel frame assuring many years of service and durability. Equipped with simple controls virtually anyone can operate this machine with minimal training.
Used equipment availability changes frequently. Contact us to confirm inventory.
| Specification | FactoryCat GTX v2.2 |
|---|---|
| Machine Dimensions | |
| Length × Width × Height | 66″ × 34″ × 64″ |
| Weight Without Batteries | 725–850 lbs |
| Weight With Batteries | 1,195–1,325 lbs |
| Chassis Construction | 3/16″ steel, powder coated |
| Front Wheels (Ø × Width) | 10″ × 3″, solid black |
| Rear Wheels (Ø × Width) | (2) 12″ × 3″, solid black |
| Brush / Pad System | |
| Disk Dimensions | 26″ – (2) 13″28″ – (2) 14″30″ – (2) 15″34″ – (2) 17″ |
| Disk Motor | (2) 0.75 hp |
| Disk Brush Speed | 270 rpm |
| Optional Motor Upgrade | (2) 1.5 hp, 350 rpm |
| Cylindrical Dimensions | 25″ – (2) 6″ × 23″29″ – (2) 6″× 27″33″ – (2) 6″ × 31″ |
| Cylindrical Motor | (2) 0.75 hp |
| Cylindrical Brush Speed | 650 rpm standard / 825 rpm optional |
| Orbital Dimensions | 28″ × 14″32″ × 14″ |
| Orbital Motor | 1.2 hp, 2,500 rpm |
| Brush Down Pressure | Up to 200 lbs / 500 lbs actuator rating |
| Power System | |
| System Voltage/Amps | 36 VDC / 210 Ah wet |
| Optional Battery | Up to 360 Ah wet / 335 Ah AGM |
| Run Time | Up to 5.5 hours |
| Drive System | |
| Power | 0.75 hp, all gear/sealed |
| Forward Speed | 0–320 ft/min / 0–3.6 mph |
| Scrubbing Speed | 0–256 ft/min / 0–2.9 mph |
| Reverse Speed | 0–230 ft/min / 0–2.6 mph |
| Solution / Recovery System | |
| Solution Tank Capacity | 33 gallons, with graduated sight tube |
| Solution Flow / Filter | 0–0.7 GPM / stainless inline |
| Recovery Tank Capacity | 36 gallons, 1.5″ drain hose |
| Demisting Chamber | 1.25 gallons |
| Drain Saver | 130 cubic inches |
| Vacuum Power | 1.0 hp / 2-stage / 6.6″ Ø |
| Water Lift / Airflow | 73″ / 96 cfm |
| General | |
| Productivity – Theoretical | Up to 47,000 sq. ft./hr. |
| Productivity – Practical | Up to 21,661 sq. ft./hr. |
